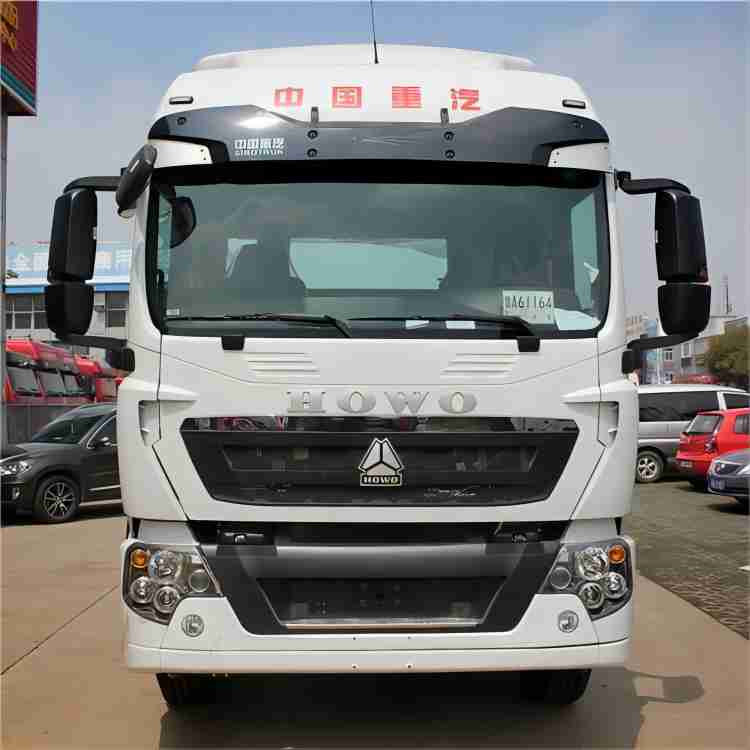

Hnyav Plaub Ntug Tsheb Hoto T5G Tsheb Laij Teb
T5G platform nruab nrab-hnyav lub tsheb loj yog cov khoom lag luam nruab nrab ntawm Tuam Tshoj lub tsheb thauj khoom lag luam ntawm cov tshuab German thiab ua ke nrog Suav teb lub teb chaws.
T5G Cab Adheres rau cov style ntawm A7, nrog cov duab muaj zog; loj qhov chaw sab hauv, kev tsav tsheb xis; Lub kaum sab xis loj ntawm lub cev yob rau pem hauv ntej, yooj yim rau kev kho; dav lub zeem muag kom paub tseeb kev nyab xeeb; 90 Degree Rooj qhib rau kev nkag tau yooj yim; Sab laug thiab sab xis cov khoom siv tau yooj yim hauv qab tus neeg pw sab nraud, uas tuaj yeem qhib lub qhov rooj sab nraud kom txaus siab rau kev mus deb-deb; Chaw ntim khoom cia txhua qhov chaw ib puag ncig, uas yooj yim rau kev muab txhua yam ntawm cov khoom lag luam txhua hnub; nce thiab nqis thiab sab pem hauv ntej thiab sab nraub qaum ntawm lub kauj tsheb kom ua kom tsav tsheb zoo; plaub-point puv-ntab txheej txheem kom ntseeg tau tias tsav tsheb xis; plaub-point puv-ntab txheej txheem kom ntseeg tau tias tsav tsheb xis; thiab ib tug loj ntawm lwm cov nta kom ntseeg tau tias tsav tsheb yooj yim. Lub kauj tsheb tuaj yeem hloov kho thiab nce, nraim thiab rov qab los xyuas kom tsav tsheb yooj yim; Plaub-point puv-ntab cab.
Raws li qhov kev thov, nws tuaj yeem nruab nrog cov rooj zaum nruab nrab, uas haum rau txhua hom luv-deb, nruab nrab thiab ntev-ntev thauj. 750mm dav muaj khoom kim heev tsaug zog muab kev txaus siab rau kev muaj kev lom zem rau cov tsav tsheb thiab cov neeg caij tsheb.
T5G cov khoom siv T5G muaj peb hom cabs los xaiv los ntawm, uas yog m-nruab nrab-ntev; W-ntev thiab V-Long High ru tsev.
T5G cov khoom siv platform yog nruab nrog MC07 (cheeb tsam ntawm tus txiv neej D08) Txhua lub cav tau nruab nrog silicone roj kiv cua thiab evb (kev tso pa tawm) ua qauv.
Lwm qhov tseem ceeb yog:
Tso roj teeb rau German nrog Tsim Kev Tsim Kho: Modular tsim, ua ke nrog kev cia khoom lub tog raj kheej, thiab lwm yam .; yooj yim rau disassble thiab tswj; Lub teeb yuag. Muffler nrog German thev naus laus zis: kev ua haujlwm siab, cov suab nrov zoo; Lub teeb yuag, yooj yim kom disassemble thiab tswj; kev sib xyaw nrog kev nce nkoj escalator.
Tsheb tsis muaj
| Cov Lus Qhia Yooj Yim | |
| Bullelin Qauv: | Zz4257n25cgd1 |
| Tsav tsheb: | 6X2 |
| Lam log: | 1800+2500 hli |
| Ntev: | 6.725m |
| Dav: | 2.496m |
| Qhov siab: | 3.83m |
| Lam log: | 1800+2500 hli |
| Zuag qhia tag nrho hnyav: | 6.8 Tonnes |
| Qhov hnyav tshaj plaws: | 25 tonnes |
| Tag nrho traction hnyav: | 39 tonnes |
| Ntau tshaj plaws ceev: | 110km / h |
| Yam tsawg kawg nkaus txoj kab uas hla: | 0m |
| Lub cav | |
| Cav: | MC07. 34-40 |
| Tus naj npawb ntawm cov thooj voos kheej kheej: | 6 |
| Roj Hom: | diesel |
| Lub tog raj kheej kev npaj: | inline |
| Kev Hloov Chaw: | 6.87L |
| Tswvyim Txuj Ci: | National IV / European IV |
| Ntau tshaj plaws horsepower: | 340HP |
| Tsim Tawm Qhov Ntau Tshaj Plaws: | 247kw |
| Torque: | 1250N-m |
| Ntau Ntau Tshaj Plaws Torque Ceev: | 1200-1800 rpm |
| Nyob ceev: | 2300 teev |
| Qauv | |
| Lub tsev yug: | Siab ru tsev |
| Sleeper Loj: | lub hli |
| Tso cai tus naj npawb ntawm cov neeg caij tsheb: | 2 tus neeg |
| Lub rooj zaum: | kab thiab ib nrab |
| Kev tiv tauj | |
| Kev xa tawm: | HW13710 |
| Hloov hom: | siv tes |
| To Koj cov iav: | 10 |
| Tus naj npawb ntawm rov qab lub zog: | 2 |
| Lub log tsheb | |
| Tus naj npawb ntawm cov log tsheb: | 8 |
| Lub log loj: | 11.00R20 |
| Roj Tank | |
| Roj Tank / Cov Roj Tank: | Aluminium Alloy |
| Roj Tank / Roj Tank muaj peev xwm: | 400L |
| CHASSIS | |
| Tsheb Qag piav qhia: | MCY13 |
| Allowable thauj khoom ntawm lub ncov qaum: | Kg |
| Tsheb Qag Ceev piv: | 4.11 |
| Kev Ncua Ntawv: Nplooj Ntoos Hlav: | 3/3/4,3/3/5 |
Cim npe nrov: Hnyav Plaub Ntug Tsheb L5G Tsheb Laij Teb, Tuam Tshoj Hnyav Dej Lub Tsheb Heho T5G Tsheb Laij Teb Chaw Tsim Tshuaj
